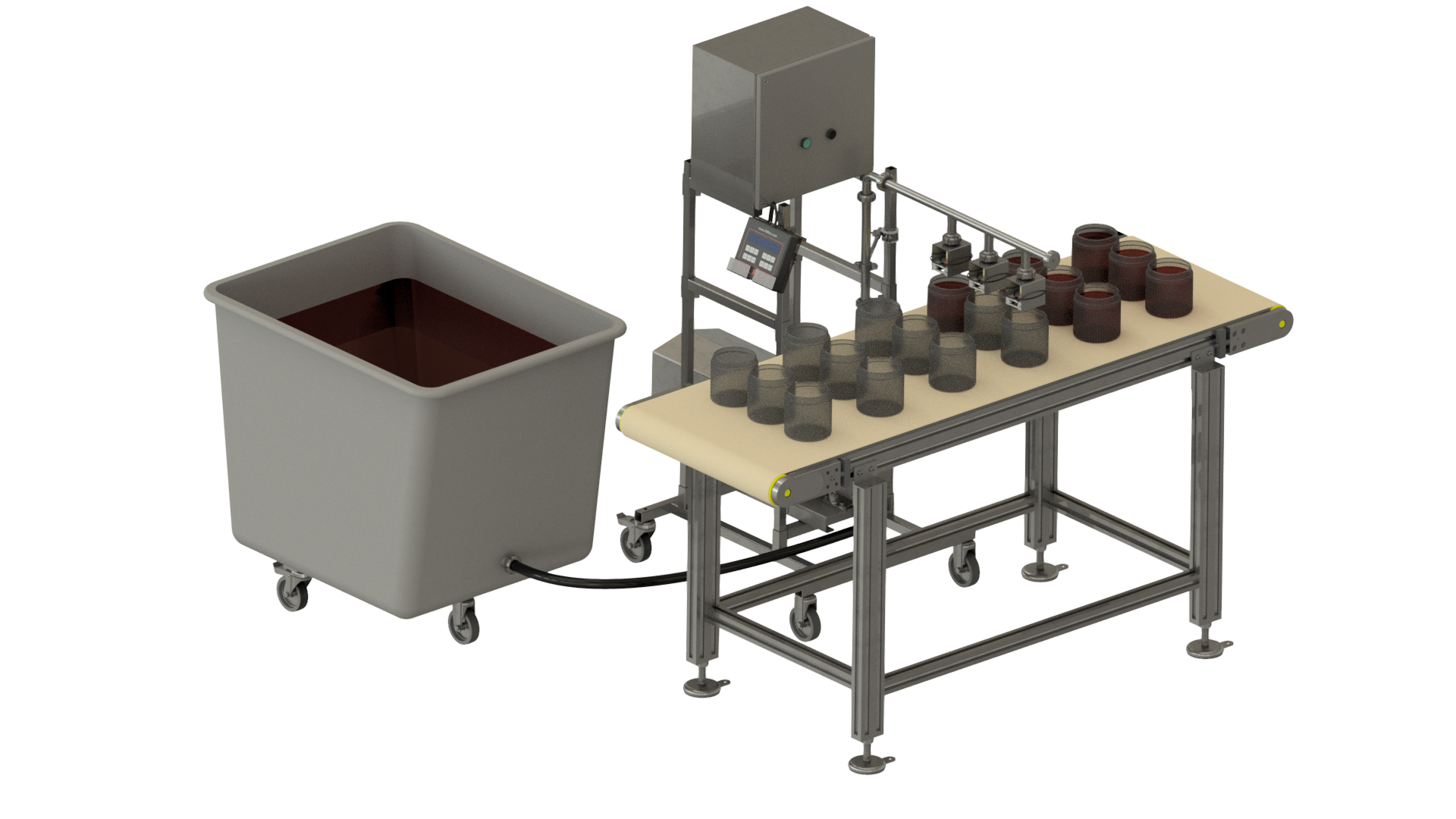

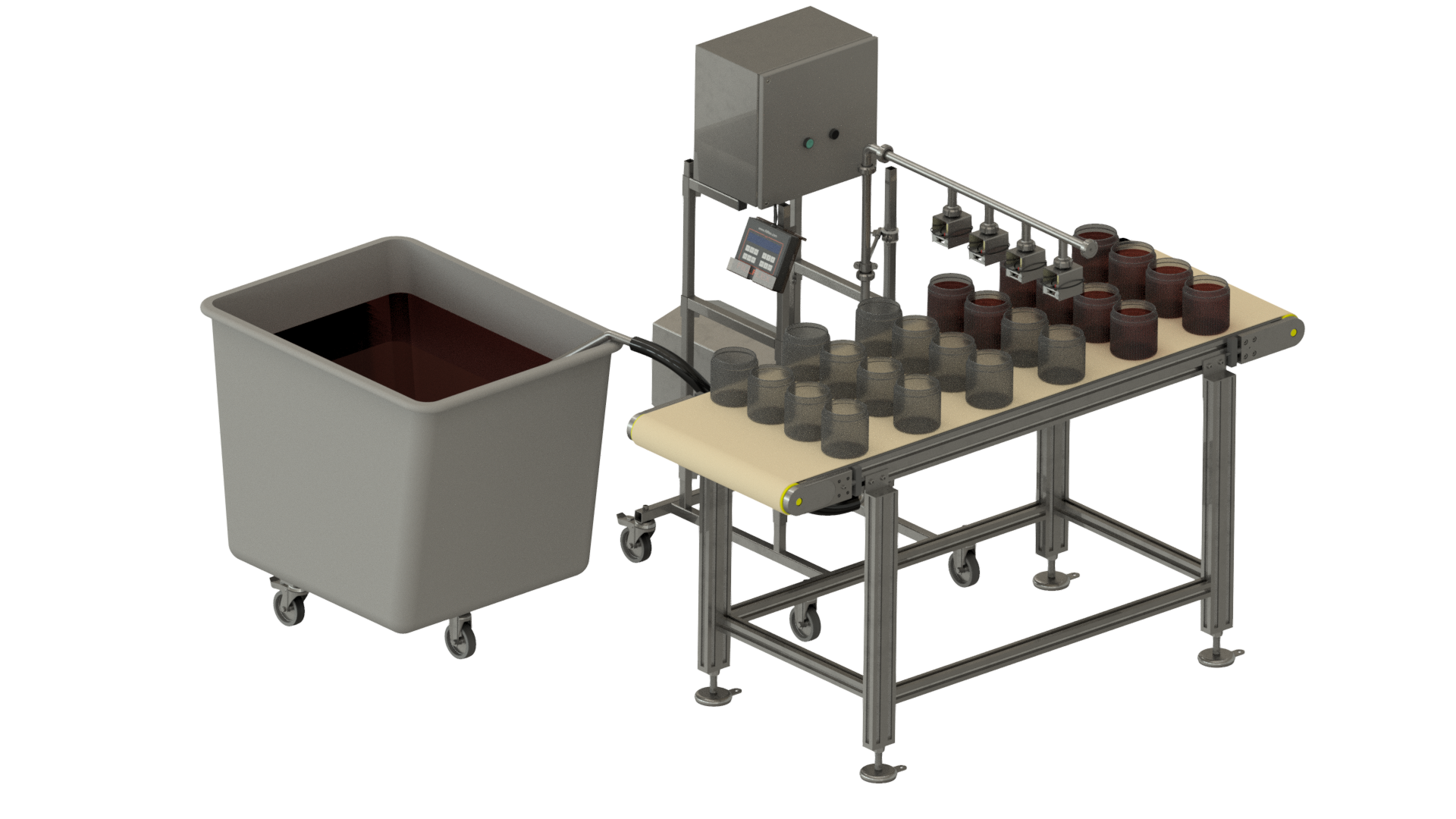

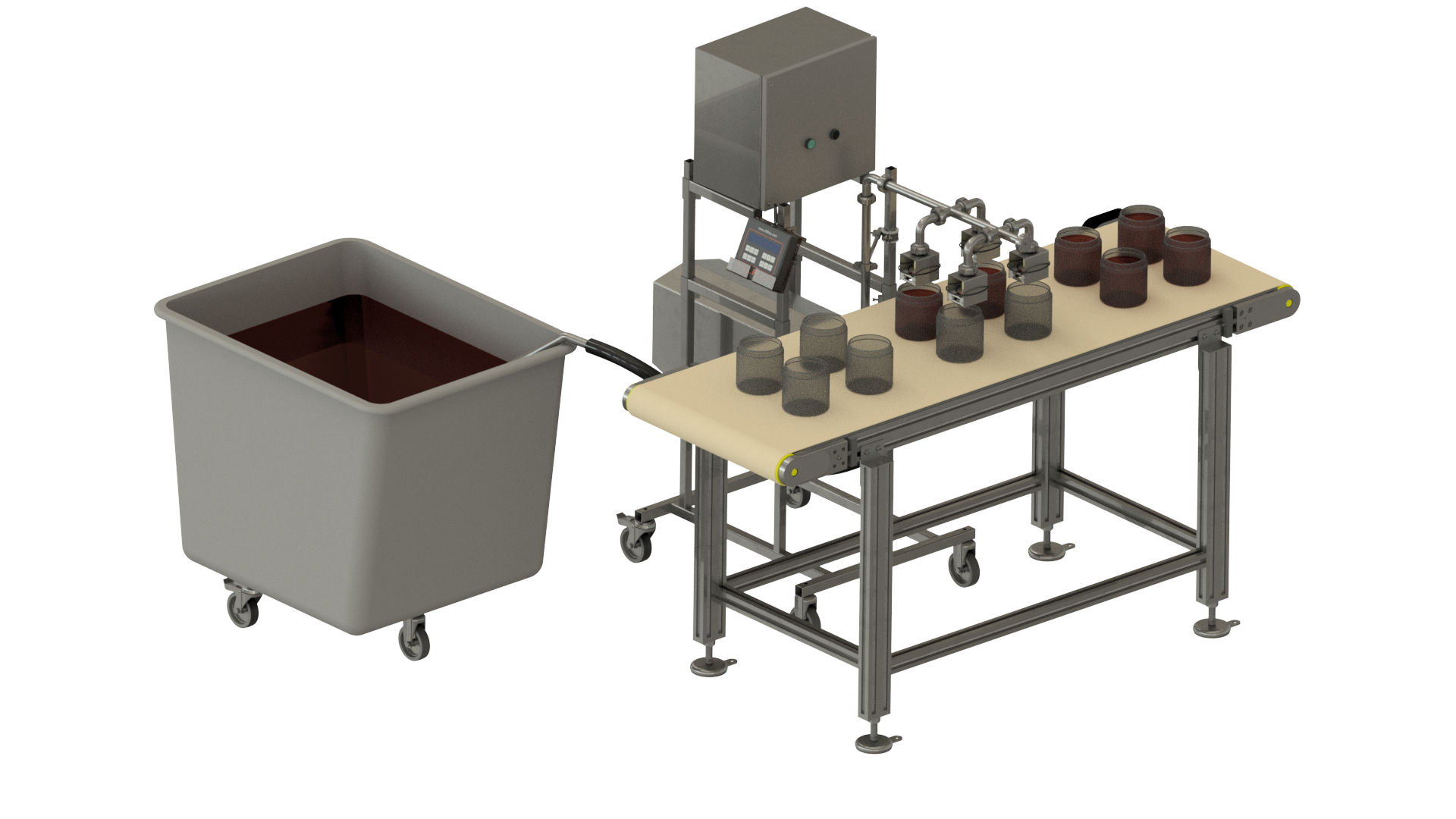

Fillflex™ Sequence

The Sequence function allows a single machine to fill two, three, or four packages of the same volume in sequence.

The Sequence function makes full use of the filling machine by conducting up to four filling operations in sequence. This feature is available as an option for the F6600 and effectively uses the waiting time in between strokes on a packaging machine, as well as the sealing time on automatic packaging machines filling.

Depending on the number of packages side by side, the control system is equipped with 2, 3 or 4 valve controls.

In the case of more than 4 packages, two or more Fillflex sequence machines can be placed next to each other in an automated production line

  • Can fill 2 to 4 packages in a row or in pairs that are fed forwards
  • Easy to adapt to lines such as packaging machines
  • Flexible filling speed & volume adjustment
  • Wide selection of valves and outlet diameters



Contact us

Contact us for more information:

Benny Linnarsson
Benny Linnarsson
, Sales Engineer, Fillflex, All
Johan Farnestam
Johan Farnestam
, Sales Engineer, Fillflex, All
Lars-Olof Frantzich
Lars-Olof Frantzich
, Technical Sales & Export, Fillflex, All
Configurations F6600CS2 F6600CS3 F6600CS4 F6600SS2* F6600SS3* F6600SS4*
Max. power motor control 0.55kw 0.55kw 0.55kw * 0.75kw
1.5kw
* 0.75kw
1.5kw
* 0.75kw
1.5kw
Valve guides 2 3 4 2 3 4
Number of recipes 30 30 30 30 30 30
Dosage Volumetric Volumetric Volumetric Volumetric Volumetric Volumetric
Version Compact Compact Compact Split Split Split
Number of sequences II III IV II III IV

Connections: Electricity: 230 VAC plug, Air: max 6 bar

FF_AO-SP25-2 Sequence pipe, 2 dimensions must be specified
FF_AO-SP25-3 Sequence pipe, 3 dimensions must be specified
FF_AO-SP25-4 Sequence pipe, 4 dimensions must be specified
