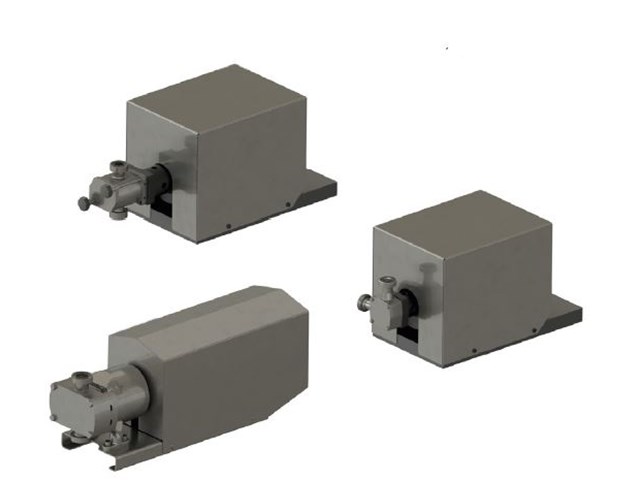

Fillflex™ Pumps

Christian Berner

Our extensive experience of pumps for dosing and filling applications has provided us a wide product range, which is suitable in the vast majority of cases. We help you to select the specific pump type to match your needs.

Different types of products in the food and chemicalindustries require different pump principles, materials and seals in order to function optimally. It is also important for the pump to be tailored to the liquid that is to be filled, with regard to viscosity, particles, pieces and corrosive products. Gentleness in relation to the product is always important to avoid foaming and product wear.
A low speed through the pump is often preferable.

Most of our pumps are suitable for food and are made of stainless steel. We also have pumps with a flushed seal for e.g. sugar solutions and water-based paint, etc. The pump models that we currently offer in our standard range are gear pumps, impeller pumps and lobe rotor pumps.

  • Gear pumps

    Suitable for a variety of thin or viscous liquids without particles. For example, oil and oil-based products, solvent and water-based paints, detergents, skin creams, foods, etc. All parts that come into contact with products are made of food grade material.

  • Impeller pumps

    Suitable for a variety of thin or viscous liquids that may also contain particles. Excellent selfpriming ability.

  • Lobe rotor pumps

    Gentle and extremely well suited to viscous products. Also suitable for products that containing pieces, such as mayonnaise-based salads, potato salad, fruit yoghurt, etc. Available for small capacities as well as larg capacities. Low pump speeds ensure gentle handling of sensitive products.



Contact us

Contact us for more information:

Benny Linnarsson
Benny Linnarsson
Sales Engineer, Fillflex
+46 31 33 66 914
benny.linnarsson(a)christianberner.com
Åke Karlsson
Åke Karlsson
Project Engineer, Fillflex
+46 709-16 20 35
Ake.Karlsson(a)christianberner.com
GEAR PUMPS IMPELLER PUMPS LOBE ROTOR PUMPS
GEAR

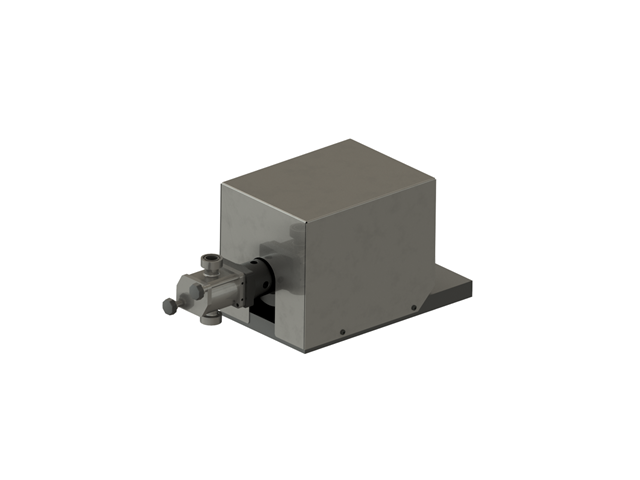

PUMPS		 PD-M200 PD-M210 PD-M220 PD-R40 PD-R50
Max. capacity 8 l/min 13 l/min 25 l/min 50 l/min 100 l/min
Displacement 0.006 l/rev 0.010 l/rev 0.018 l/rev 0.08 l/rev 0.22 l/rev
Rec. filling volume* 10 – 200 ml 10 – 500 ml 20 – 1 500 ml 100 – 3 000 ml 300 – 9 500 ml
Motor output 0,55 kW 0,55 kW 0,55 kW 75 kW 1,5 kW
O-ring Viton Viton Viton PTFE PTFE
Gear Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L / Cast iron Stainless steel 316L / Cast iron
Max temp (°C) < 60 < 60 < 60 < 130 < 130
Solid particles? No No No No No
Suitable for food? Yes Yes Yes No No
Flushed seal       Optional Optional
IMPELLER

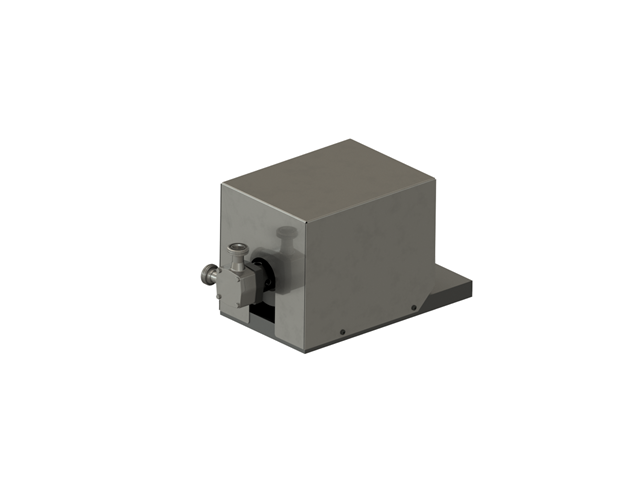

PUMPS		 PD-28220 PD-28320
Max. capacity 35 l/min 60 l/min
Max. capacity 0.023 l/rev 0.053 l/rev
Rec. filling volume* 30 – 2 000 ml 60 – 4 000 ml
Motor output 0,55 kW 0,55 kW
O-ring Nitrile Nitrile
Gear Neoprene/EPDM** Neoprene/EPDM**
Max temp (°C) <60, <100 <60, <100
Solid particles Yes Yes
Suitable for food? Yes Yes
Flushed seal Optional Optional

**Impeller i Neopren som standard. Vid val av EPDM lägg till suffix EPDM. Exempel; "PD-28220-EPDM"

LOBE ROTOR

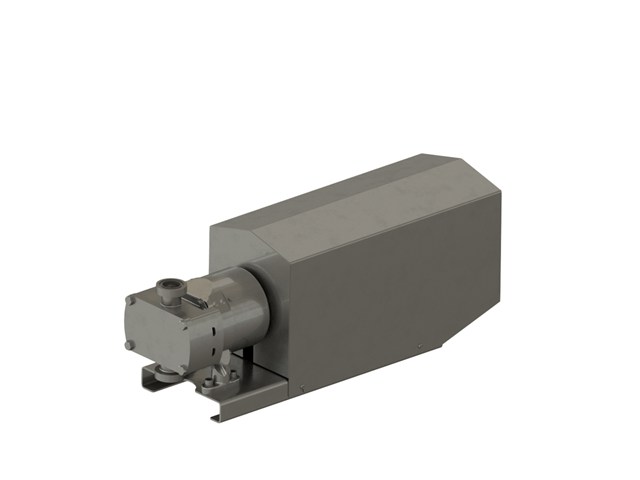

PUMPS		 PD-OP12 PD-OP13 PD-OP22 PD-OP23 PD-OP32 PD-OP33
Max. capacity 60 l/min 100 l/min 170 l/min 210 l/min 320 l/min 320 l/min
Deplacement 0.06 l/rev 0.10 l/rev 0.17 l/rev 0.21 l/rev 0.32 l/rev 0.40 l/rev
Rec. filling volume* 100 – 3 000 ml 150 – 5 000 ml 200 – 3 500 ml 250 – 4 500 ml 350 – 4 000 ml 400 – 9 000 ml
Motor output 0,75 kW 0,75 kW 1,5 kW 1,5 kW 1,5 kW 1,5 kW
O-ring Viton Viton Viton Viton Viton Viton
Gear Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L Stainless steel 316L
Max temp (°C) 130 130 130 130 130 130
Solid particles <6 mm <6 mm <8 mm <8 mm <10 mm <10 mm
Suitable for food? Yes Yes Yes Yes Yes Yes
Flushed seal Optional Optional Optional Optional Optional Optional

*Rec. filling volume is based on filling a reasonable number of packages per minute at 50% pump
speed. Larger volumes can be achieved with a longer filling time.
